Drawings.

"Every other profession has its final product. A car manufacturer has the new model, a singer has her songs, a developer has the line of codes. For us Structural Engineer, we have our drawings, detailed by the analysis and design."

That's the pep talk our Head of Design Unit gave at the short welcome orientation.

So today, I will be writing about the first task, other than the training ofcourse, I did after joining the company. It's called Beam Schedule. It's one of the final sheets we deliver the contractor/client.

BEAM SCHEDULE:

Beam Schedule is a table which informs a contractor of the required beam types in a building. It gives the quantity, size and the different beam types in a particular building. The number of reinforcing bars, stirrups/cadre required for each type of beam and the spacing between the bars. The table is an end product of a long iterative process, and it should be taken as such.

The size of a beam is given in terms of its Width x Depth. You can all imagine a rectangular block. The different types of beams are as per the end conditions: Fixed ends, Cantilever, A Continuous Beam, Simply Supported. The types of beams are determined by Us as per analysis results.

There is no one correct way of updating a beam schedule. It varies vastly with Engineers, their preference and experience. But it does require a correct format. So, the following grouping is required to create a Beam Schedule:

1. Beam size.

2. Types of End Connections.

3. The reinforcement required.

Extra remarks are always put in case of an irregularity.

Below is an image example of a Beam Schedule.

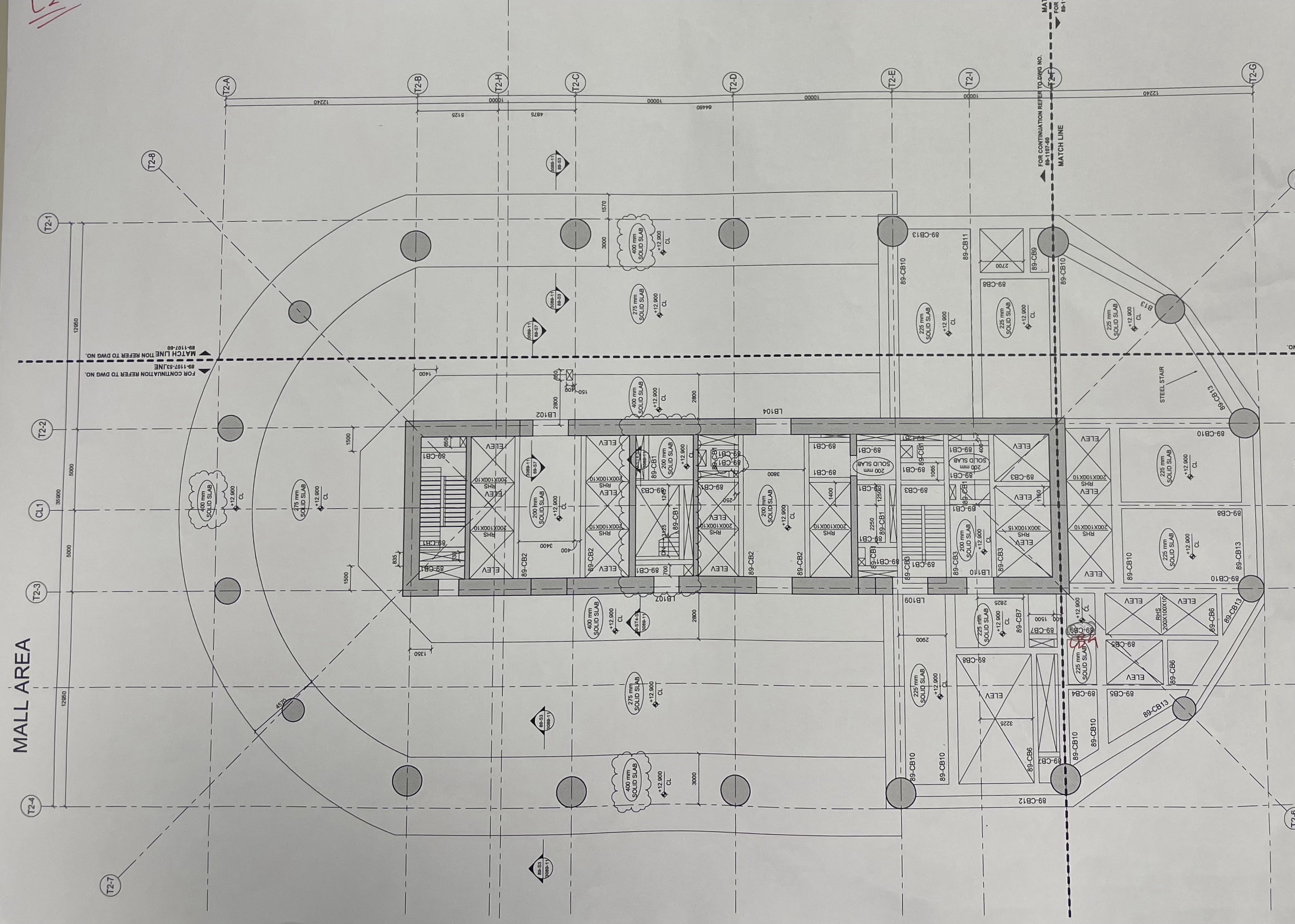

Here we can see a plan view of a floor with different annotations.

If we zoom to the center right, we have this view. I have marked two beams for easy reference, 89-CB1 and 89-CB2. This grouping is done as I explained above. After the grouping is done, we create the Beam Schedule.













As you can see, the schedule includes all the information required for the smooth working by the contractor. The reinforcement provided has been calculated considering all the reactions in the beam. The Bars Location indicates the type of end conditions.

As mentioned above, the schedule is highly subjective and can vary differently with Engineers. This is one way.
